Macro PLE Raman PL Measurement System

(UV / VIS / NIR) Macro PLE + Raman + PL Measurement System

1.Excitation Laser Source Options (typical): please, specify a desired laser wavelngth suitable to your spectrum (e.g. UV / VIS / NIR)
A.LDM830100CWA 830nm Solid State Laser
- Output power: 100mW
- Mode: TEM00
- Beam diameter: 1.25mm +/- 10%
- Beam Quality M2: <1.2
- Beam Ellypticity: <1.1:1 (5M)
- Polarization: >5:1 vertical, >100:1 on request
- Power stability: <0.5% h
- Noise 0Hz-100MHz: <3.5% peak to peak
- Supply voltage: 85-245Vdc, 50/60Hz
- Features: optional computer controlled power, safety-Interlock

B. FKL532.50.CWA.L 532nm Solid State Laser
- Output power: 50mW
- Mode: TEM00
- Beam diameter: 1.0mm +/- 10%
- Beam Quality M2: <1.3
- Beam Ellypticity: <1.1:1 (5M)
- Polarization: >5:1 vertical, >100:1 on request
- Power stability: <3.5% h
- Noise 0Hz-100MHz: <3.5$ peak to peak
- Supply voltage: 24Vdc, 2Amp
- Features: computer controlled power, safety-Interlock, LCD working hours display remote connector
- PC interface: RS232

C. IK3501R-G, 325nm HeCd Laser
- Output power : 50mW
- Air cooled TEM00 mode 1.2mm beam dia
- 0.5mrad beam divergence
- Includes power supply

D. Other lasers wavelength(s) (e.g. 266nm, 488nm, 405nm, 514nm, 785nm) are also available

2. Excitation Light Source:
A. DL450-XE 450W Xe Arc Lamp
- 450W Xe lamp with vertical type lamp housing
- Spectral range: 260-2000nm, Ozone free lamp
- 190-2000nm Ozone generation available
- Collimating lens (35mm dia.)
- LPS-450-500 current controlled lamp power supply and 20kV ignitor
- All necessary cables

3. SCP200 Macro Sample Chamber
- 40mm dia. FusedSilica PL/CX lens
- Beam diverting mirror
- Variable ND filter
- Bandpass filter (3nm FWHM for three laser sources)
- 10 mm aperature beam dump, raman edge filter.( for three laser source)
- Sample holder
- X-axis rack and pinion dovetail stage for focusing

4. MOSF-6 Motorized Order Sorting Filter Wheel Assembly
- 6 holes filter wheel w/3 cut-off filters (please specify)
- Standard order sorting filters: 400nm, 500nm, 600nm

5. MonoRa 324i Monochromator
- Stepping motor scanning system with 32-bit microprocessor control
- Power supply and Monochromator Instruction manual included
- Monoscan basic control software included
- Resolution: 0.09nm @ 435.8 nm (1200gr/mm grating) 10 um slit
- Focal length: 320mm
- Optical path: Czerny-Turner type, Imaging Spectrograph by Toroidal Mirrors.
- Aperture: f/4.2,
- Grating Turret: dual-grating (68 mm x 68 mm) or triple turret
- Interface: RS232 & USB Standard
- Accuracy: +/- 0.2nm
- Repeatability: +/- 0.04nm
- Drive-step size: 0.0025 nm with 1200gr/mm
- Dispersion: 2.5nm/mm
- Focal-plane size: 26mm wide x 14mm high
- Fixed diverter mirror assembly for entrance side port
- Exit selection diverter mirror assembly for exit ports
- Micro adjustable slit assembly for entrance and exit ports
0 to 5mm(10micrometer increment/decrement unit)
- 32 bit control board
- Gratings:
1) 3-1200-250H, 1200G/mm, 300nm blaze, Holographic Grating
190-800nm Optimal Wavelength Range, Al+MgF2 coating
2) 2-1200-700H, 1200G/mm, 700nm blaze, Holographic Grating
400-1200nm Optimal Wavelength Range, Al+MgF2 coating

6. SC100A Macro Sample Chamber with IN/OUT Mount
- 30mm dia. Fused Silica lens
- Biconvex, 3pcs included
- Shortwave pass filter
- 200-500nm (exciting source range)
- Motorized Rotation sample holder for angle scan with 0.1 degree resolution

7. MonoRa324i Monochromator
- Adjustable side entrance & exit slits, front exit port with flange for multichannel detector
- Beam diverter mirror (1 entrance and 2 exits)
- Resolution: 0.09nm @ 435.8 nm (1200gr/mm grating) 10um slits
- Focal length: 320mm,
- Optical path: Czerny-Turner type Imaging Spectrograph by Toroidal Mirrors.
- Aperture: f/4.2
- Grating Turret: dual-grating (68 mm x 68 mm) or triple turret, interchangeable optional
- Interface: RS232 & USB Standard,
- Accuracy: +/- 0.2nm
- Repeatability: +/- 0.04nm
- Focal-plane size: 26mm wide x 14mm high
- Fixed diverter mirror assembly for entrance side port
- Exit selection diverter mirror assembly for exit ports
- Micro adjustable slit assembly for entrance and exit ports 0 to 5mm (10micrometer increment/decrement)
- 32 bit control board
- Gratings

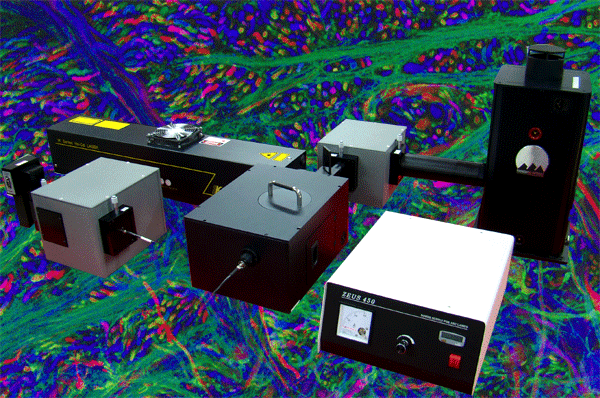

Macro PL PLE Measurement System with Cryostat

(UV / VIS / NIR) Macro PL + PLE Measurement System with Cryostat
1.Excitation Laser Source Options (typical): please, specify a desired laser wavelngth suitable to your spectrum (e.g. UV / VIS / NIR)
A.LDM830100CWA 830nm Solid State Laser
- Output power: 100mW
- Mode: TEM00
- Beam diameter: 1.25mm +/- 10%
- Beam Quality M2: <1.2
- Beam Ellypticity: <1.1:1 (5M)
- Polarization: >5:1 vertical, >100:1 on request
- Power stability: <0.5% h
- Noise 0Hz-100MHz: <3.5% peak to peak
- Supply voltage: 85-245Vdc, 50/60Hz
- Features: optional computer controlled power, safety-Interlock

B. FKL532.50.CWA.L 532nm Solid State Laser
- Output power: 50mW
- Mode: TEM00
- Beam diameter: 1.0mm +/- 10%
- Beam Quality M2: <1.3
- Beam Ellypticity: <1.1:1 (5M)
- Polarization: >5:1 vertical, >100:1 on request
- Power stability: <3.5% h
- Noise 0Hz-100MHz: <3.5$ peak to peak
- Supply voltage: 24Vdc, 2Amp
- Features: computer controlled power, safety-Interlock, LCD working hours display remote connector
- PC interface: RS232

C. IK3501R-G, 325nm HeCd Laser
- Output power : 50mW
- Air cooled TEM00 mode 1.2mm beam dia
- 0.5mrad beam divergence
- Includes power supply

D. Other lasers wavelength(s) (e.g. 266nm, 488nm, 405nm, 514nm, 785nm) are also available

2. Excitation Light Source:
A. DL450-XE 450W Xe Arc Lamp
- 450W Xe lamp with vertical type lamp housing
- Spectral range: 260-2000nm, Ozone free lamp
- 190-2000nm Ozone generation available
- Collimating lens (35mm dia.)
- LPS-450-500 current controlled lamp power supply and 20kV ignitor
- All necessary cables

3. MonoRa151i Monochromator
- Adjustable entrance and exit slits, and front optical path
- Resolution: 0.2nm @ 435.8nm (1200gr/mm grating) 10 um slits
- Focal length: 150mm
- Optical path: Czerny-Turner type, Imaging Spectrograph by Toroidal Mirrors
- Aperture: f/4.3
- Grating Turret: dual-grating (32 mm x 32 mm) turret
- Interface: RS232 & USB standard
- Accuracy: +/- 0.25nm
- Repeatability: +/- 0.04nm
- Drive-step size: 0.005 nm with 1200gr/mm
- Dispersion : 5nm/mm
- Focal-plane size: 26mm wide x 14mm high
- Fixed diverter mirror assembly for entrance side port
- Micro adjustable slit assembly for entrance and exit ports
0 to 5mm(10micrometer increment/decrement unit)
- 32 bit control board
A) 1-120-500, Ruled Grating, 32x32mm, 1200 G/mm with 500 blaze,330–900nm Optimal Wavelength Range

4. SCP300 PL Sample Chamber
- 50mm dia., Fused silica PL/CX lens
- Beam Splitter
- ND filter (4 from OD 1.3 to 3.0 ,200-700 nm range)
- Bandpass & Longpass Filtera ( transmission: 368.5 – 820.6 nm)
- Beam diverter for laser beam path

5. MonoRa511i Monochromator
- Adjustable side entrance & exit slits (1 entrance and 2 exits)
- Beam diverting mirror
- Resolution: 0.05nm @ 435.8 nm (1200gr/mm grating), 10 um slits
- Focal length: 500mm
- Optical path: Czerny-Turner type Imaging Spectrograph by Toroidal Mirrors
- Aperture : f/6.5
- Grating Turret: dual-grating (68 mm x 68 mm) or triple turret
- Interface: RS232 & USB Standard
- Accuracy: +/- 0.2nm
- Repeatability: +/- 0.04nm
- Drive-step size: 0.0025 nm with 1200gr/mm
- Dispersion: 1.7nm/m
- Focal-plane size: 26mm wide x 14mm high
- Fixed diverter mirror assembly for entrance side port
- Exit selection diverter mirror assembly for exit ports
- Micro adjustable slit assembly for entrance and exit ports
0 to 5mm(10micrometer increment/decrement unit)
- 32 bit control board
- Gratings:
A. 3-120-500 Ruled Grating, 68x68mm, 1800gr/mm, 400nm blaze, 330-850nm Optimum Wavelength Range
B. 3-120-850 90led Grating, 68×68mm, 1200gr/mm, 850nm blaze, 500-1400nm Optimum Wavelength Range
- Power supply and Monochromator Instruction manual included

6. M420 Dual Phase Lock-in Amplifier
- Frequency: 10Hz to 100kHz
- Sensitivity: 3uV to 1V(for 1V output) switched in 1, 3, 10 steps
- Gain accuracy: 1%
- Dynamic range: 60dB
- Acquisition time: 10s Max

7. M300CD Digital Display Chopper
- Consists of 300CD chopper control unit incorporating 5 digit
- Display of actual chopping frequency
- Switch selectable 1.0or 0.1Hz resolution. 5Hz to 20KHz.
- Chopping head, cable and 4 chopping disks included

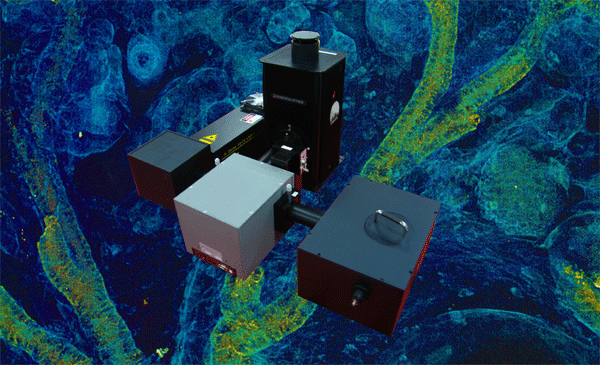

Macro ATR Raman PL Measurement System

(UV / VIS / NIR) Macro ATR + Raman + PL Measurement System

1.Excitation Laser Source Options (typical): please, specify a desired laser wavelngth suitable to your spectrum (e.g. UV / VIS / NIR)
A.LDM830100CWA 830nm Solid State Laser
- Output power: 100mW
- Mode: TEM00
- Beam diameter: 1.25mm +/- 10%
- Beam Quality M2: <1.2
- Beam Ellypticity: <1.1:1 (5M)
- Polarization: >5:1 vertical, >100:1 on request
- Power stability: <0.5% h
- Noise 0Hz-100MHz: <3.5% peak to peak
- Supply voltage: 85-245Vdc, 50/60Hz
- Features: optional computer controlled power, safety-Interlock

B. FKL532.50.CWA.L 532nm Solid State Laser
- Output power: 50mW
- Mode: TEM00
- Beam diameter: 1.0mm +/- 10%
- Beam Quality M2: <1.3
- Beam Ellypticity: <1.1:1 (5M)
- Polarization: >5:1 vertical, >100:1 on request
- Power stability: <3.5% h
- Noise 0Hz-100MHz: <3.5$ peak to peak
- Supply voltage: 24Vdc, 2Amp
- Features: computer controlled power, safety-Interlock, LCD working hours display remote connector
- PC interface: RS232

C. IK3501R-G, 325nm HeCd Laser
- Output power : 50mW
- Air cooled TEM00 mode 1.2mm beam dia
- 0.5mrad beam divergence
- Includes power supply

D. Other lasers wavelength(s) (e.g. 266nm, 488nm, 405nm, 514nm, 785nm) are also available

2. Excitation Light Source:
A. DL450-XE 450W Xe Arc Lamp
- 450W Xe lamp with vertical type lamp housing
- Spectral range: 260-2000nm, Ozone free lamp
- 190-2000nm Ozone generation available
- Collimating lens (35mm dia.)
- LPS-450-500 current controlled lamp power supply and 20kV ignitor
- All necessary cables

3. SCP200 Macro Sample Chamber
- 40mm dia. FusedSilica PL/CX lens
- Beam diverting mirror
- Variable ND filter
- Bandpass filter (3nm FWHM for three laser sources)
- 10 mm aperature beam dump, raman edge filter.( for three laser source)
- Sample holder
- X-axis rack and pinion dovetail stage for focusing

4. MOSF-6 Motorized Order Sorting Filter Wheel Assembly
- 6 holes filter wheel w/3 cut-off filters (please specify)
- Standard order sorting filters: 400nm, 500nm, 600nm

5. MonoRa 324i Monochromator
- Stepping motor scanning system with 32-bit microprocessor control
- Power supply and Monochromator Instruction manual included
- Monoscan basic control software included
- Resolution: 0.09nm @ 435.8 nm (1200gr/mm grating) 10 um slit
- Focal length: 320mm
- Optical path: Czerny-Turner type, Imaging Spectrograph by Toroidal Mirrors.
- Aperture: f/4.2,
- Grating Turret: dual-grating (68 mm x 68 mm) or triple turret
- Interface: RS232 & USB Standard
- Accuracy: +/- 0.2nm
- Repeatability: +/- 0.04nm
- Drive-step size: 0.0025 nm with 1200gr/mm
- Dispersion: 2.5nm/mm
- Focal-plane size: 26mm wide x 14mm high
- Fixed diverter mirror assembly for entrance side port
- Exit selection diverter mirror assembly for exit ports
- Micro adjustable slit assembly for entrance and exit ports
0 to 5mm(10micrometer increment/decrement unit)
- 32 bit control board
- Gratings:
1) 3-1200-250H, 1200G/mm, 300nm blaze, Holographic Grating, 190-800nm Optimal Wavelength Range, Al+MgF2 coating
2) 2-1200-700H, 1200G/mm, 700nm blaze, Holographic Grating, 400-1200nm Optimal Wavelength Range, Al+MgF2 coating

6. SC100A Macro Sample Chamber with IN/OUT Mount
- 30mm dia. Fused Silica lens
- Biconvex, 3pcs included
- Shortwave pass filter
- 200-500nm (exciting source range)
- Motorized Rotation sample holder for angle scan with 0.1 degree resolution

7. DV401A-BV CCD Detector
- Sensor Option: Back illuminated AR coated for optimal performance in VIS
- Active Pixels: 1024x127
- Pixel Size: 26x26
- Image Area: 26.6x3.3
- PC Interface: USB 2.0
- Peak QE: 95% @ 600 nm, 20% @ 350 /900 nm
- Wavelength range: 200- 1000 nm
- Min Operating Temp: -75
- Pixel Well Depth: 1000000
- FVB: 75
- Read Noise: 4
- Read-out Rate: 0.1
- Dark Current @ -70: 0.02
- P25 Shutter & SD166 Shutter Driver
- Andor SOLIS application program

8. S-050(or025)-TE2-H TE cooled Si Photodiode
- 200-1100 nm 2.5 mm or 5 mm dia.
- Included TE cooled power supply

9. PBS-020-TE2 two Stage TEC PbS Detector
- Operating Temperature: 22 to –30 deg C by two stage TEC

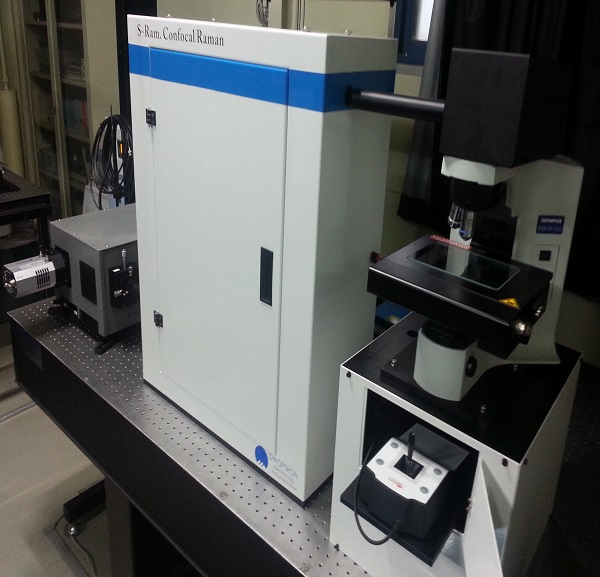

Confocal Raman Mappging System共聚焦拉曼系統

(UV / VIS / NIR) Micro Confocal Raman Mapping System with Eyepiece

1. Excitation Laser Source Options (typical): please, specify a desired laser wavelngth suitable to your spectrum (e.g. UV / VIS / NIR)

A.LDM830100CWA 830nm Solid State Laser
- Output power: 100mW
- Mode: TEM00
- Beam diameter: 1.25mm +/- 10%
- Beam Quality M2: <1.2
- Beam Ellypticity: <1.1:1 (5M)
- Polarization: >5:1 vertical, >100:1 on request
- Power stability: <0.5% h
- Noise 0Hz-100MHz: <3.5% peak to peak
- Supply voltage: 85-245Vdc, 50/60Hz
- Features: optional computer controlled power, safety-Interlock,

B. FKL532.50.CWA.L 532nm Solid State Laser
- Output power: 50mW
- Mode: TEM00
- Beam diameter: 1.0mm +/- 10%
- Beam Quality M2: <1.3
- Beam Ellypticity: <1.1:1 (5M)
- Polarization: >5:1 vertical, >100:1 on request
- Power stability: <3.5% h
- Noise 0Hz-100MHz: <3.5$ peak to peak
- Supply voltage: 24Vdc, 2Amp
- Features: computer controlled power, safety-Interlock, LCD working hours display remote connector
- PC interface: RS232

C. IK3501R-G, 325nm HeCd Laser
- Output power : 50mW
- Air cooled TEM00 mode 1.2mm beam dia
- 0.5mrad beam divergence
- Includes power supply

D. Other lasers wavelength(s) (e.g. 266nm, 488nm, 405nm, 514nm, 785nm) are also available

2. Confocal Raman Head Module
- Operating wavelength range: 266-830 nm
- Beam spot resolution: approx. 1um @ 100x Objective lens @TEMoo Mode
- Fine Z scanning range: 400 um(PZT closed – loop)
- Motorized XYZ stage for Mapping
- 10x NUV objective lens, wavelength range: 325-500nm
- Working Distance: 15mm WD, 20mm EFL
- 40x NUV objective lens, wavelength range: 325-500nm
- Working Distance: 1mm WD, 5mm EFL
- Includes sample holder & control software
- Fiber couple set
- Driver board for scanning module
- Precision pinhole
- Pinhole alignment mechanism
- Fiber alignment mechanism
- 640x480 CCD camera for Sample Image & Monitoring system
- Wide field image optics
- Wide range refractive optics
- Optical Path & alignment adjustable function
- Excitation/emission filter (Dichroic filter /Raman Edge filter set for 325 nm/532/830 laser source)
- Koller High Brightness light source & optics
- Linear power supply
- Real time video signal generation board
- High speed output board
- Shielded cable set

3. MonoRa 512i Monochromator
- 500mm focal length
- Multiple-port Input & Output Ports
- Adjustable side entrance & exit slits, front exit port with flange for multichannel detector and beam diverter mirror (1 entrance and 2 exits)
- Resolution: 0.05nm @435.8 nm (1200gr/mm grating), 10 um slits
0.12nm 1200gr/mm grating 0.08 nm with 1800 gr/mm /10um slit/1024 pixel CCD
- Raman shift from 94Cm-1 to 1345Cm-1 with 1200gr/mm @532nm with 41 nm coverage
- Raman shift from from 90Cm-1 to 3400Cm-1 with 1200gr/mm @325nm with 41 nm coverage
- Raman shift system resolution :1.2 cm-1 resolution at 1800gr/mm @ 830 nm source
- Optical path: f/6.5 imaging Czerny-Turner spectrometer
- Interface: USB & RS232 Standard
- Focal-plane size: 26mm wide x 14mm height
- Fixed entrance beam diverter mirror
- Micrometer controlled adjustable slit assembly for entrance
0 to 5mm(10micrometer increment/decrement unit)
- Gratings:
1) 3-240-H250Holographic Grating 68x68mm, 2400G/mm, 250nm blaze, 190-800nm Optimal Wavelength Range
2) 3-600-500, Ruled Grating 68×68mm, 600G/mm, 500nm blaze, 330-900nm Optimal Wavelength Range
3) 3-180-500Ruled Grating 68x68mm, 1800G/mm, 500nm blaze, 330-900nm Optimal Wavelength Range
- Fiber signal cable and manual stage for align

4. High performance TE cooled CCD Detector
- Back-illuminated type CCD
- Pixel format: 1024x256 pixels, 26um pixel size & 26.7×6.7mm active area
- Dark Current: 0.001e- /pix/sec @-100C
- Minimum operating Temp: -100℃ /TE cooled, water circulator
- Spectral Range: 200-1050nm & >90% QE at peak
- Includes 16bits, 100KHz, USB interface
- Andor Solis Appplication Software
- P25 shutter and SD-166 shutter driver

5. Data Acquisition & Processor
- 17” LCD Monitor
- Windows XP Operating System (English)

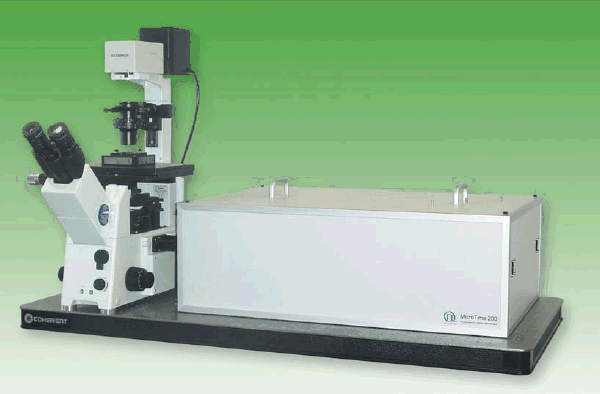

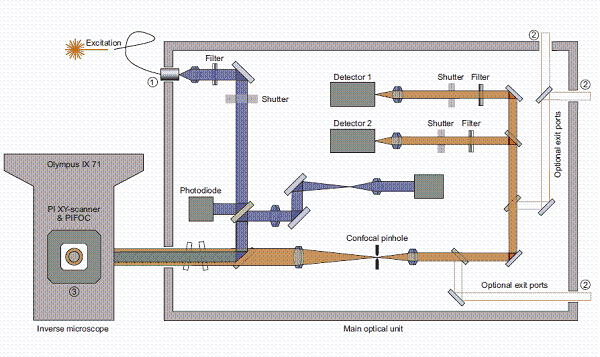

MicroTime 200 TCSPC時間相關單光子計數

Specifications
