MENLO飛秒激光器，光梳系統，
太赫茲探測器，太赫茲時域光譜儀，光電探測器
Menlo Systems生產多種飛秒激光器系統,光梳系統，太赫茲探測器，太赫茲時域光譜儀，光電探測器。其中包括基于光纖的激光器，能夠達到幾十飛秒的脈寬，波長位于可見和紅外波段。這些系統非常適合高速光譜儀，光學測量和阿秒脈沖的產生。

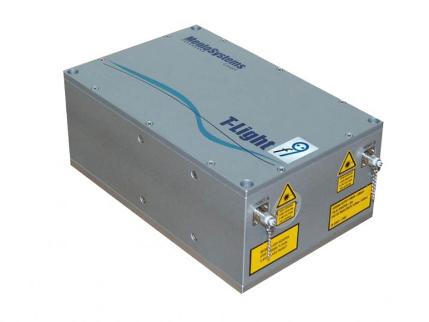

T-Light系列-摻Er飛秒光纖激光器
產品特點： 緊湊的結構設計；
24小時/7天的工業級穩定性；
卓越的性價比；
產品應用： 多光子激發共聚焦顯微鏡子；
材料微加工；
非線性光學；
可取代鈦寶石激光器作為振蕩源；
THz的產生。
| |
T-Light
|
T-Light FC |
| Central Wavelength |
1560 nm ± 20 nm |
1560 nm ± 20 nm |
| Average Power |
>120 mW |
>100 mW |
| Pulse Energy |
>1.2 nJ |
>1.0 nJ |
| Pulse Width |
<90 fs |
<90 fs |
| Repetition Rate |
100 MHz |
100 MHz |
| Repetition Rate Instability |
<1 ppm over 90 hours at constant temperature |
<1 ppm over 90 hours at constant temperature |
| Timing Jitter |
<2 fs [rms, 10 kHz.. 10 MHz] |
<2 fs [rms, 10 kHz.. 10 MHz] |
| Output Port |
free space |
fiber-coupled (FC/APC) |
| Polarization |
linear, s-polarized |
linear, PM fiber |
| Beam Height |
60 mm |
|

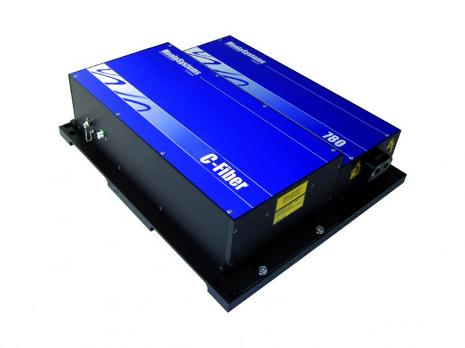

C-fiber系列-摻Er飛秒光纖激光器
產品特點：真正的自啟動鎖模機制；高平均輸出功率；重復頻率100 MHz (其他可要求)；提供RS232接口用于數據采集；擁有出色的價格/性價比，免維護。
產品應用：放大器種子光源；遠程通訊；生物學和醫學診斷成像；時間分辨光譜分析；多光子激發共聚焦顯微鏡（MPE）；非線性光學；THz 產生。
| |
C-Fiber 780 |
C-Fiber 780 HIGH POWER |
| Central Wavelength |
780 nm ± 10nm |
780 nm ± 10nm |
| Average Power |
>100 mW |
>180 mW |
| Pulse Energy |
>1.0 nJ |
>1.8 nJ |
| Pulse Width |
<120 fs |
<120 fs |
| Repetition Rate |
100 MHz (50-250 MHz with VARIO) |
100 MHz (50-250 MHz with VARIO) |
| Repetition Rate Instability |
<1 ppm over 90 hours at constant temperature |
<1 ppm over 90 hours at constant temperature |
| Timing Jitter |
<2 fs [rms, 10 kHz.. 10 MHz] |
<2 fs [rms, 10 kHz.. 10 MHz] |
| Output Port |
free space |
free space |
| Auxiliary Output Port |
free space, 1560 nm, >200 mW |
free space, 1560 nm, >350 mW |
| Additional Fiber-Coupled Seed Port |
1 (up to 4 with MULTIBRANCH) |
1 (up to 4 with MULTIBRANCH) |
| Polarization |
linear, s-polarized |
linear, s-polarized |
| Beam Height |
75 mm |
75 mm |
| |
C-Fiber |
C-Fiber High Power |
| Central Wavelength |
1560 nm ± 20 nm |
1560 nm ± 20 nm |
| Average Power |
>100 mW |
>350 mW |
| Pulse Energy |
>1.0 nJ |
>3.5 nJ |
| Pulse Width |
<90 fs |
<90 fs |
| Repetition Rate |
100 MHz (50-250 MHz with Vario) |
100 MHz (50-250 MHz with Vario) |
| Repetition Rate Instability |
<1 ppm over 90 hours at constant temperature |
<1 ppm over 90 hours at constant temperature |
| Timing Jitter |
<2 fs [rms, 10 kHz.. 10 MHz] |
<2 fs [rms, 10 kHz.. 10 MHz] |
| Output Port |
fiber-coupled (FC/APC) |
free space |
| Polarization |
linear, PM fiber |
linear, s-polarized |
| Beam Height |
|
55 mm |

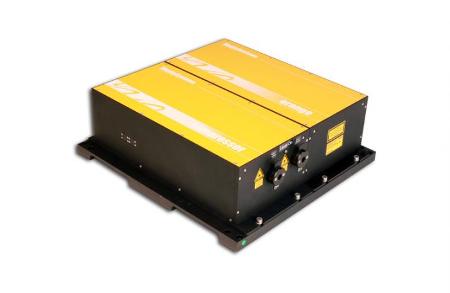

Orange系列-摻Y(jié)b飛秒光纖激光器
產品特點： 緊湊的結構設計；
24小時/7天的工業級穩定性；
卓越的性價比；
產品應用： 多光子激發共聚焦顯微鏡子；
材料微加工；
非線性光學；
可取代鈦寶石激光器作為振蕩源；
THz的產生。
| |
orange
|
orange HIGH POWER
|
orange HIGH POWER 10 |
| Central Wavelength |
1040 nm ± 10 nm |
1040 nm ± 10 nm |
1040 nm ± 10nm |
| Average Power |
>100 mW |
>1 W |
>10 W |
| Pulse Energy |
>2 nJ |
>20 nJ |
>200 nJ |
| Pulse Width |
<150 fs |
<150 fs |
<150 fs |
| Repetition Rate |
100 MHz (50-250 MHz with VARIO) |
100 MHz (50-250 MHz with VARIO) |
100 MHz (50-250 MHz with VARIO) |
| Repetition Rate Instability |
<1 ppm over 90 hours at constant temperature |
<1 ppm over 90 hours at constant temperature |
<1 ppm over 90 hours at constant temperature |
| Output Port |
free space |
free space |
free space |
| Auxiliary Output Port |
optional |
optional |
optional |
| Additional Fiber-Coupled Seed Port |
1 (up to 4 with MULTIBRANCH) |
1 (up to 4 with MULTIBRANCH) |
1 (up to 4 with MULTIBRANCH) |
| Polarization |
linear, p-polarized |
linear, p-polarized |
linear, p-polarized |
| Beam Height |
75 mm |
75 mm |
75 mm |
| |
WITH OPTION CHIRPED PULSES |
WITH OPTION CHIRPED PULSES |
|
| Pulse Width |
1-4 ps |
30-50 ps |
30-50 ps |
| Output Port |
fiber-coupled (FC/APC) |
fiber-coupled (FC/APC) |
fiber-coupled (FC/APC) |
| Polarization |
linear, PM 980 fiber |
linear, PM 980 fiber |
linear, PM 980 fiber |

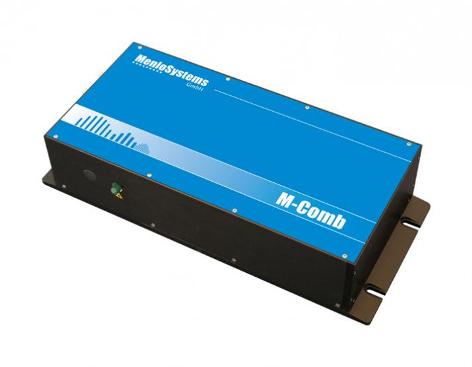

M-Comb系列-摻Er飛秒光纖激光器
|
M-Comb |
orange-Comb |
| Central Wavelength |
1560 nm ± 20 nm |
1040 nm +/- 10 nm |
| Average Power |
>75 mW |
>5 mW |
| Spectral width (FWHM) |
>25 nm |
>15 nm |
| Repetition Rate |
250 MHz |
250 MHz |
| Repetition rate tuning |
>2 MHz |
>2 MHz |
| CEO frequency tuning |
>250 MHz |
>250 MHz |
| Repetition Rate Instability |
<1 ppm over 90 hours at constant temperature |
<1 ppm over 90 hours at constant temperature |
| Timing Jitter |
<2 fs [rms, 10 kHz.. 10 MHz] |
<2 fs [rms, 10 kHz.. 10 MHz] |
| Output Ports |
4 x fiber-coupled (LC/APC) |
1 x fiber-coupled (LC/APC) |
| Polarization |
linear, PM fiber |
linear, PM fiber |

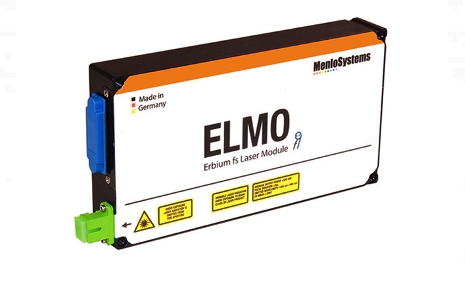

ELMO系列-摻Er飛秒光纖激光器
產品特點：高穩定度可24小時/7天運轉；低噪聲；全保偏輸出；Figure 9單一鎖模狀態；開機以后60秒內出光；一體化設計。
| |
ELMO |
ELMO HIGH POWER |
| Central Wavelength |
1560 nm ± 30 nm |
1560 nm ± 30 nm |
| Average Power |
>1 mW |
>100 mW |
| Pulse Energy |
>1.0 pJ |
>1.0 nJ |
| Pulse Width |
chirped |
<90 fs |
| Repetition Rate |
100 MHz (50-100 MHz with VARIO) |
100 MHz (50-100 MHz with VARIO) |
| Repetition Rate Instability |
<1 ppm over 90 hours at constant temperature |
<1 ppm over 90 hours at constant temperature |
| Timing Jitter |
<2 fs [rms, 10 kHz.. 10 MHz] |
<2 fs [rms, 10 kHz.. 10 MHz] |
| Output Port |
fiber-coupled, SC/APC |
fiber-coupled, SC/APC |
| Dispersion Management |
dispersion can be factory set to achieve short pulses after 2m of additional fiber |
dispersion can be factory set to achieve short pulses after 2m of additional fiber |
| 2nd Fiber-Coupled Seed Port |
available with MULTIBRANCH |
available with MULTIBRANCH |
| 2nd High Power Output Port |
|
available with MULTIBRANCH |
| Polarization |
linear, PM fiber |
linear, PM fiber |

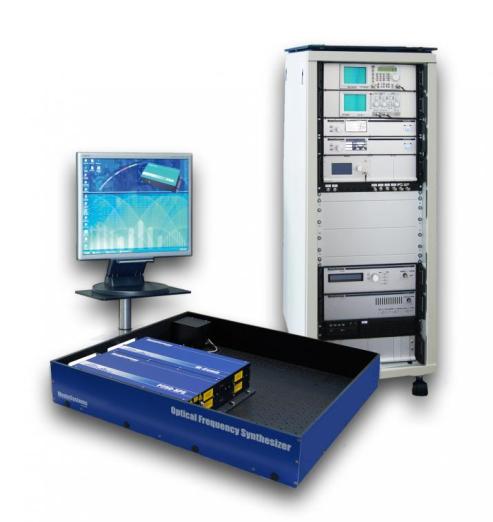

光學頻率梳
FC1500-250-WG
FC8004
FC1000-250
Mid-IR Comb
| FC1500-250-WG |
|
| Comb spacing |
250 MHz |
| Accuracy |
10-14 or same as reference, whichever applies first |
| Stability |
5x10-13 one sec. or same as reference, whichever applies first |
| Tuning range of comb spacing |
>2 MHz |
| Tuning range of offset frequency |
>250 MHz |
| Wavelength range |
1050-2100 nm and 530-900 nm |
| FC8004 |
|
| Comb spacing |
200 MHz |
| Accuracy |
10-14 or same as reference, whichever applies first |
| Stability |
5x10-13 in one sec. or same as reference, whichever applies first |
| Wavelength range |
630-850 nm and 532, 1064 nm or 500-1100 nm |
| FC1000-250 |
|
| Comb spacing |
250 MHz |
| Accuracy |
10-14 or same as reference, whichever applies first |
| Stability |
5x10-13 in one sec. or same as reference, whichever applies first |
| Tuning range of comb spacing |
>2 MHz |
| Tuning range of offset frequency |
>250 MHz |
| Wavelength range |
530-1080 nm |
| Mid-IR Comb |
|
| Comb spacing |
100 or 250 MHz |
| Accuracy |
10-14 or same as reference, whichever applies first |
| Stability |
5x10-13 in one sec. or same as reference, whichever applies first |
| Tuning range of comb spacing |
>2 MHz |
| Tuning range of offset frequency |
>250 MHz |
| Wavelength range |
3.1-3.4 um and 6.5-7.8 um (extended range optional) |
太赫茲天線和太赫茲光譜儀
用于800 nm的太赫茲天線
TERA8-1天線是安裝在印刷電路板上的單偶極結構。該天線可用作發射器和探測器。
TERA8-1 用于800納米的太赫茲天線
T8-H2 用于TERA8-1太赫茲天線的安裝座
用于1030 nm的太赫茲天線
TERA10-SL25-FC天線和TERA10-DP25-FC天線具有能實現易用性和性能的保偏、光纖耦合特性。發射器天線和接收器天線的幾何結構為了實現信噪比和帶寬而進行優化。發射器具有條形幾何結構，探測器具有偶極幾何結構。
TERA10-DP25-FC 1030 nm太赫茲接收器，光纖耦合輸入
TERA10-SL25-FC 1030 nm太赫茲發生器，光纖耦合輸入
用于1560 nm的太赫茲天線
TERA15-SL25天線和TERA15-DP25天線，與上述TERA8-1一樣，是安裝在印刷電路板上的基板。TERA-SL25發射器是條形幾何結構，且TERA15-DP25是偶極幾何結構。

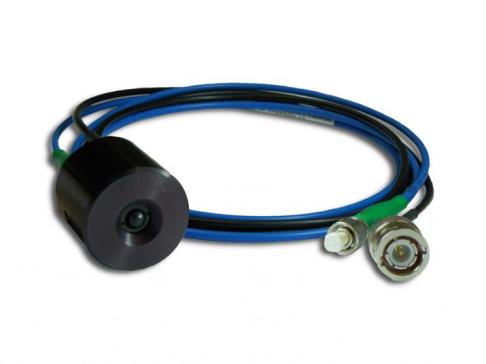

TERA15-TX-FC天線和TERA15-RX-FC天線是保偏、光纖耦合模塊，它經優化以獲得更佳的太赫茲功率。這些天線用于完全光纖耦合的TERA-K15和TERA-OSCAT太赫茲光譜儀中。
TERA15-SL25 1560 nm太赫茲發射器，自由空間輸入
TERA15-DP25 1560 nm太赫茲接收器，自由空間輸入
T15-H2 TERA15-DP25和TERA15-SL25 太赫茲天線安裝座
TERA15-TX-FC 1560 nm太赫茲發射，光纖耦合輸入
TERA15-RX-FC 1560 nm太赫茲接收器，光纖耦合輸入
光電探測器
APD210 高速雪崩探測器，硅，400-1000納米
APD310 高速雪崩探測器， InGaAs，850-1650納米
FPD310 850-1650 nm高靈敏度PIN探測器，光纖耦合，1 MHz-1.8GHz
FPD310-F 850-1650 nm高靈敏度PIN探測器，自由空間，1MHz-1.8GHz

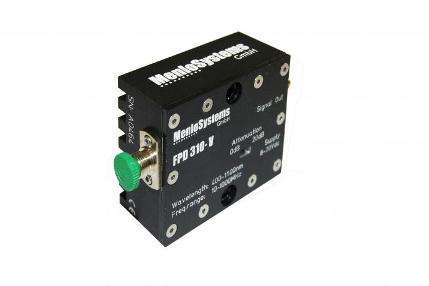

FPD310-V 高靈敏度硅PIN探測器，400 - 1000 nm，光纖耦合，1 MHz - 1.5 GHz
FPD310-FV 400-1000納米高靈敏度PIN探測器，自由空間，1MHz-1.5GHz
FPD510 850-1650 nm高靈敏度PIN探測器，光纖耦合，0-250MHz
FPD510-F 850-1650 nm高靈敏度PIN探測器，自由空間，0-250MHz
FPD510-V 高靈敏度硅PIN探測器，400 - 1000 nm，光纖耦合，DC - 250 MHz
FPD510-FV 400-1000納米高靈敏度PIN探測器，自由空間，0-250MHz
|
線陣CCD光纖光譜儀
