美國SET紫外UV-LED
提供美國SET的多種紫外波長和光學(xué)設(shè)計的LED
| Part # |
Wave-length |
FWHM |
Min Power coupled into a 600um .22NA fiber |
Maximum Drive Current CW |
Maximum Drive Current Pulsed |
Maximum duty Cycle in pulsed mode |
| LED-240 |
240 |
10 nm |
2μW |
20mA |
200mA |
1% |
| LED-245 |
245 |
10 nm |
2μW |
20mA |
200mA |
1% |
| LED-250 |
250 |
12 nm |
5μW |
20mA |
200mA |
1% |
| LED-255 |
255 |
12 nm |
5μW |
20mA |
200mA |
1% |
| LED-260 |
260 |
12 nm |
15μW |
20mA |
200mA |
1% |
| LED-265 |
265 |
12 nm |
15μW |
20mA |
200mA |
1% |
| LED-270 |
270 |
12 nm |
15μW |
20mA |
200mA |
1% |
| LED-275 |
275 |
12 nm |
15μW |
20mA |
200mA |
1% |
| LED-280 |
280 |
12 nm |
15μW |
20mA |
200mA |
1% |
| LED-285 |
285 |
12 nm |
15μW |
20mA |
200mA |
1% |
| LED-290 |
290 |
12 nm |
15μW |
20mA |
200mA |
1% |
| LED-295 |
295 |
12 nm |
15μW |
20mA |
200mA |
1% |
| LED-300 |
300 |
12 nm |
15μW |
20mA |
200mA |
1% |
| LED-305 |
305 |
12 nm |
15μW |
20mA |
200mA |
1% |
| LED-310 |
310 |
10 nm |
15μW |
20mA |
200mA |
1% |
| LED-315 |
315 |
10 nm |
15μW |
20mA |
200mA |
1% |
| LED-325 |
325 |
12 nm |
15μW |
20mA |
200mA |
1% |
| LED-335 |
335 |
15 nm |
20μW |
20mA |
200mA |
1% |
| LED-345 |
345 |
15 nm |
20μW |
20mA |
200mA |
1% |
| LED-355 |
355 |
15 nm |
20μW |
20mA |
200mA |
1% |
查看LS450 LED光源
LED光學(xué)設(shè)計

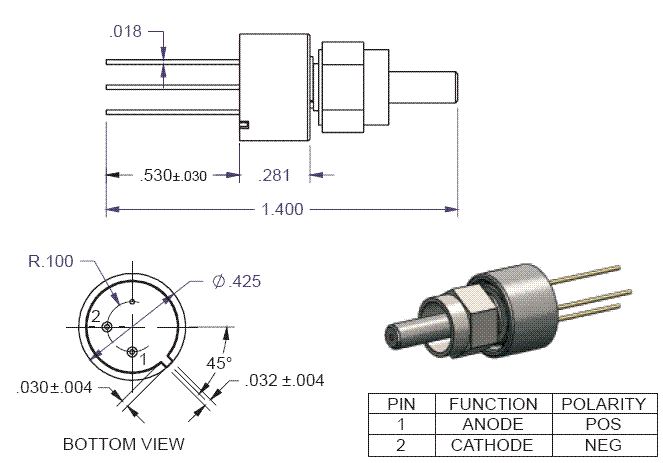

光纖輸出型：

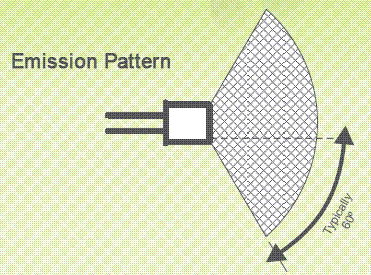

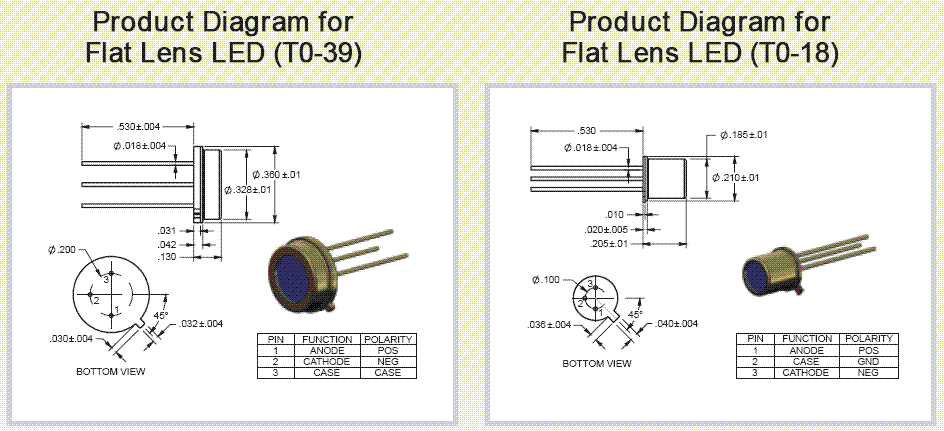

平面封裝型：

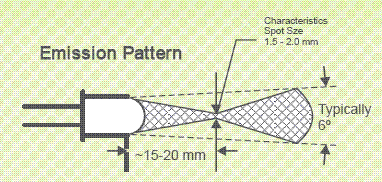

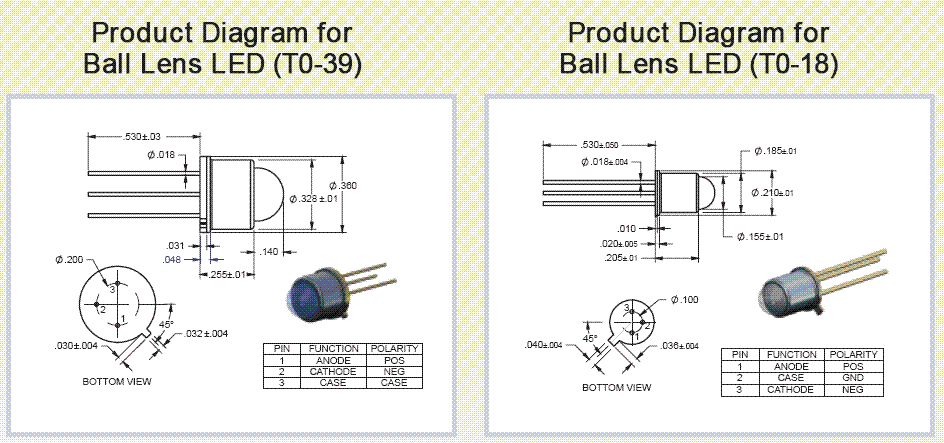

球面封裝型：

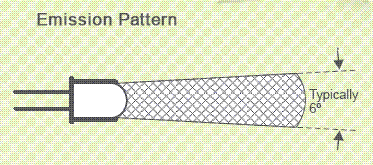

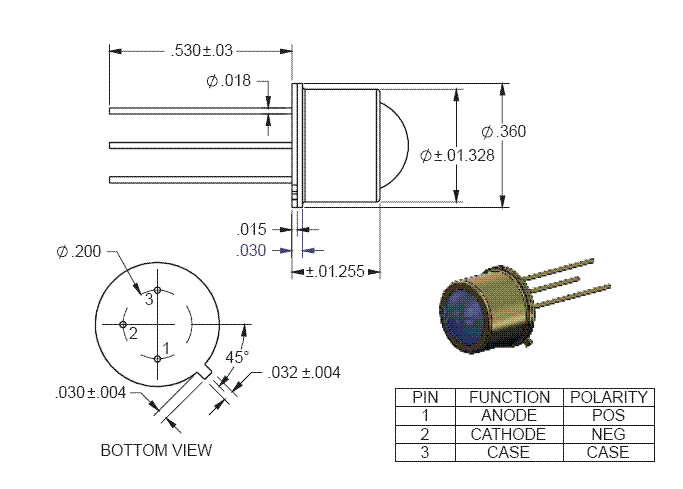

半球面封裝型：
|
