Asahi-spectra 濾波片

Asahi-Spectra 濾波片

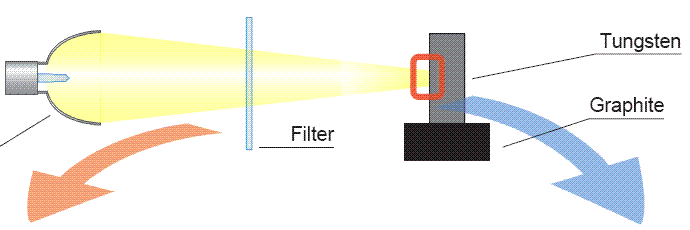

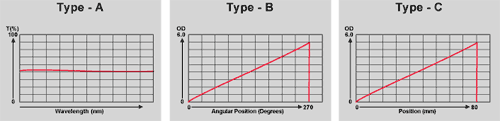

Asahi-Spectra生產各類濾波片，包括長通濾波片，短通濾波片，帶通濾波片，中性濾波片，紫外濾波片，超冷濾波片(Super Cold Filter，隔熱濾波片)，激光線濾波片，汞燈濾波片，同時也接受定制各類濾波片。可用于紫外濾波，天文濾波和光刻濾波等。

Semrock濾光片
 Andover濾光片
 Thorlabs濾波片
 DELTA濾波片

紫外濾波片

紫外透過濾波片

Target Band	Transmission Band	Rejection Band	Item#
Target Band	Transmission Band	Rejection Band	Φ25mm
UVA	315nm-400nm	200nm-700nm	XUVA315
UVB	280nm-310nm	350nm-680nm	XUVB280
UVA+UVB	260nm-400nm	430nm-680nm	XUVC260

紫外短通濾波片

Cut-off Wavelength	Transmission Band	Rejection Band	Item#
Cut-off Wavelength	Transmission Band	Rejection Band	Φ25mm	50 x 50mm
250nm	232nm - 240nm	267nm - 295nm	XUS0250	ZUS0250
265nm	235nm - 254nm	283nm - 312nm	XUS0265	ZUS0265
300nm	240nm - 290nm	322nm - 352nm	XUS0300	ZUS0300
325nm	240nm - 315nm	350nm - 380nm	XUS0325	ZUS0325
350nm	240nm - 340nm	376nm - 407nm	XUS0350	ZUS0350
385nm	240nm - 375nm	416nm - 448nm	XUS0385	ZUS0385
400nm	250nm - 390nm	431nm - 465nm	XUS0400	ZUS0400

紫外長通濾波片

Cut-off Wavelength	Transmission Band	Rejection Band	Item#
Cut-off Wavelength	Transmission Band	Rejection Band	Φ25mm	50 x 50mm
250nm	260nm - 800nm	210nm - 233nm	XUL0250	ZUL0250
275nm	285nm - 800nm	232nm - 257nm	XUL0275	ZUL0275
300nm	310nm - 800nm	253nm - 280nm	XUL0300	ZUL0300
325nm	340nm - 800nm	273nm - 304nm	XUL0325	ZUL0325
350nm	360nm - 800nm	288nm - 331nm	XUL0350	ZUL0350
385nm	400nm - 800nm	316nm - 363nm	XUL0385	ZUL0385
400nm	410nm - 800nm	200nm - 383nm	XUL0400	ZUL0400

紫外帶通濾波片

Center Wavelength (CWL)	FWHM	Peak Transmittance (min.)	Rejection Band	Item#
Center Wavelength (CWL)	FWHM	Peak Transmittance (min.)	Rejection Band	Φ25mm	50 x 50mm
254nm	10nm	20%	200nm - 1,200nm	XBPA254	ZBPA254
260nm	10nm	20%	200nm - 1,200nm	XBPA260	ZBPA260
270nm	10nm	20%	200nm - 1,200nm	XBPA270	ZBPA270
280nm	10nm	20%	200nm - 1,200nm	XBPA280	ZBPA280
290nm	10nm	20%	200nm - 1,200nm	XBPA290	ZBPA290
300nm	10nm	30%	200nm - 1,200nm	XBPA300	ZBPA300
310nm	10nm	35%	200nm - 1,200nm	XBPA310	ZBPA310
320nm	10nm	45%	200nm - 1,200nm	XBPA320	ZBPA320
330nm	10nm	45%	200nm - 1,200nm	XBPA330	ZBPA330
340nm	10nm	45%	200nm - 1,200nm	XBPA340	ZBPA340
350nm	10nm	45%	200nm - 1,200nm	XBPA350	ZBPA350
360nm	10nm	40%	200nm - 1,200nm	XBPA360	ZBPA360
365nm	10nm	40%	200nm - 1,200nm	XBPA365	ZBPA365
370nm	10nm	40%	200nm - 1,200nm	XBPA370	ZBPA370
380nm	10nm	45%	200nm - 1,200nm	XBPA380	ZBPA380
390nm	10nm	45%	200nm - 1,200nm	XBPA390	ZBPA390
400nm	10nm	45%	200nm - 1,200nm	XBPA400	ZBPA400

紫外帶通濾波片--高透過率

Center Wavelength (CWL)	FWHM	Peak Transmittance (min.)	Rejection Band	Item#
Center Wavelength (CWL)	FWHM	Peak Transmittance (min.)	Rejection Band	Φ25mm
254nm	10nm	60%	200nm - 450nm	XHQA254
260nm	10nm	60%	200nm - 450nm	XHQA260
270nm	10nm	60%	200nm - 450nm	XHQA270
280nm	10nm	60%	200nm - 450nm	XHQA280
290nm	10nm	60%	200nm - 450nm	XHQA290
300nm	10nm	65%	200nm - 450nm	XHQA300
310nm	10nm	65%	200nm - 450nm	XHQA310
313nm	10nm	65%	200nm - 450nm	XHQA313
320nm	10nm	65%	200nm - 520nm	XHQA320
330nm	10nm	65%	200nm - 520nm	XHQA330
340nm	10nm	65%	200nm - 520nm	XHQA340
350nm	10nm	65%	200nm - 520nm	XHQA350
360nm	10nm	70%	200nm - 520nm	XHQA360
365nm	10nm	70%	200nm - 520nm	XHQA365
370nm	10nm	70%	200nm - 520nm	XHQA370
380nm	10nm	70%	200nm - 520nm	XHQA380
390nm	10nm	70%	200nm - 520nm	XHQA390

紫外帶通濾波片--寬透過范圍

Description	Center Wavelength (CWL)	Rejection Band	Item#
			25mm Dia	50 x 50mm
UV Broad Bandpass Filter 340nm	340nm	200-2000nm	XRR0340	ZRR0340

短通濾波片

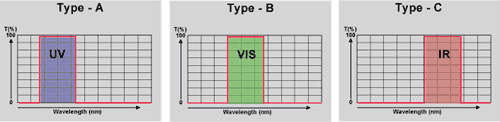

Asahi-spectra短通濾波片

Type	Description	Cut/Off (nm)	Thickness (mm)	Item#
Type	Description	Cut/Off (nm)	Thickness (mm)	25mm Dia.	50x50mm
A	Shortpass Filter/UV 250nm	250	1	XUS0250	ZUS0250
A	Shortpass Filter/UV 265nm	265	1	XUS0265	ZUS0265
A	Shortpass Filter/UV 300nm	300	1	XUS0300	ZUS0300
A	Shortpass Filter/UV 325nm	325	1	XUS0325	ZUS0325
A	Shortpass Filter/UV 350nm	350	1	XUS0350	ZUS0350
A	Shortpass Filter/UV 385nm	385	1	XUS0385	ZUS0385
A	Shortpass Filter/UV 400nm	400	1	XUS0400	ZUS0400
A	Shortpass Filter/UV 425nm	425	1	XUS0425	ZUS0425
A	Shortpass Filter/UV 450nm	450	1	XUS0450	ZUS0450
A	Shortpass Filter/UV 460nm	460	1	XUS0460	ZUS0460
A	Shortpass Filter/UV 500nm	500	1	XUS0500	ZUS0500
B	Shortpass Filter/VIS 430nm	430	1.5	XVS0430	ZVS0430
B	Shortpass Filter/VIS 450nm	450	1.5	XVS0450	ZVS0450
B	Shortpass Filter/VIS 470nm	470	1.5	XVS0470	ZVS0470
B	Shortpass Filter/VIS 490nm	490	1.5	XVS0490	ZVS0490
B	Shortpass Filter/VIS 510nm	510	1.5	XVS0510	ZVS0510
B	Shortpass Filter/VIS 530nm	530	1.5	XVS0530	ZVS0530
B	Shortpass Filter/VIS 550nm	550	1.5	XVS0550	ZVS0550
B	Shortpass Filter/VIS 570nm	570	1.5	XVS0570	ZVS0570
B	Shortpass Filter/VIS 590nm	590	1.5	XVS0590	ZVS0590
B	Shortpass Filter/VIS 610nm	610	1.5	XVS0610	ZVS0610
B	Shortpass Filter/VIS 630nm	630	1.5	XVS0630	ZVS0630
B	Shortpass Filter/VIS 650nm	650	1.5	XVS0650	ZVS0650
B	Shortpass Filter/VIS 670nm	670	1.5	XVS0670	ZVS0670
B	Shortpass Filter/VIS 690nm	690	1.5	XVS0690	ZVS0690
B	Shortpass Filter/VIS 710nm	710	1.5	XVS0710	ZVS0710
B	Shortpass Filter/VIS 750nm	750	1	XVS0750	ZVS0750
C	Shortpass Filter/IR 780nm	780	1	XIS0780	ZIS0780
C	Shortpass Filter/IR 810nm	810	1	XIS0810	ZIS0810
C	Shortpass Filter/IR 840nm	840	1	XIS0840	ZIS0840
C	Shortpass Filter/IR 870nm	870	1	XIS0870	ZIS0870
C	Shortpass Filter/IR 900nm	900	1	XIS0900	ZIS0900
C	Shortpass Filter/IR 930nm	930	1	XIS0930	ZIS0930
C	Shortpass Filter/IR 960nm	960	1	XIS0960	ZIS0960
C	Shortpass Filter/IR 990nm	990	1	XIS0990	ZIS0990

下載短通濾波片產品手冊

長通濾波片

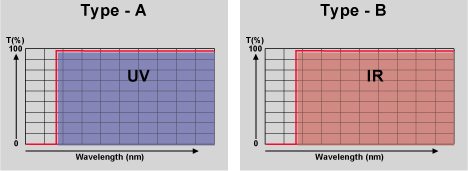

Asahi-spectra長通濾波片

Type	Description	Cut/On (nm)	Thickness (mm)	Item#
Type	Description	Cut/On (nm)	Thickness (mm)	25mm Dia.	50x50mm
A	Longpass Filter/UV 250nm	250	1	XUL0250	ZUL0250
A	Longpass Filter/UV 275nm	275	1	XUL0275	ZUL0275
A	Longpass Filter/UV 300nm	300	1	XUL0300	ZUL0300
A	Longpass Filter/UV 325nm	325	1	XUL0325	ZUL0325
A	Longpass Filter/UV 350nm	350	1	XUL0350	ZUL0350
A	Longpass Filter/UV 385nm	385	1	XUL0385	ZUL0385
A	Longpass Filter/UV 400nm	400	1	XUL0400	ZUL0400
A	Longpass Filter/UV 422nm	422	1	XUL0422	ZUL0422
	Longpass Filter/VIS 430nm	430	3	XVL0430	ZVL0430
	Longpass Filter/VIS 450nm	450	3	XVL0450	ZVL0450
	Longpass Filter/VIS 470nm	470	3	XVL0470	ZVL0470
	Longpass Filter/VIS 490nm	490	3	XVL0490	ZVL0490
	Longpass Filter/VIS 510nm	510	3	XVL0510	ZVL0510
	Longpass Filter/VIS 530nm	530	3	XVL0530	ZVL0530
	Longpass Filter/VIS 550nm	550	3	XVL0550	ZVL0550
	Longpass Filter/VIS 570nm	570	3	XVL0570	ZVL0570
	Longpass Filter/VIS 590nm	590	3	XVL0590	ZVL0590
	Longpass Filter/VIS 610nm	610	3	XVL0610	ZVL0610
	Longpass Filter/VIS 630nm	630	3	XVL0630	ZVL0630
	Longpass Filter/VIS 650nm	650	3	XVL0650	ZVL0650
	Longpass Filter/VIS 670nm	670	3	XVL0670	ZVL0670
	Longpass Filter/VIS 690nm	690	3	XVL0690	ZVL0690
	Longpass Filter/VIS 710nm	710	3	XVL0710	ZVL0710
	Longpass Filter/VIS 730nm	730	3	XVL0730	ZVL0730
B	Longpass Filter/IR 750nm	750	3	XIL0750	ZIL0750
B	Longpass Filter/IR 780nm	780	3	XIL0780	ZIL0780
B	Longpass Filter/IR 810nm	810	3	XIL0810	ZIL0810
B	Longpass Filter/IR 840nm	840	3	XIL0840	ZIL0840
B	Longpass Filter/IR 870nm	870	3	XIL0870	ZIL0870
B	Longpass Filter/IR 900nm	900	4	XIL0900	ZIL0900
B	Longpass Filter/IR 930nm	930	4	XIL0930	ZIL0930
B	Longpass Filter/IR 960nm	960	4	XIL0960	ZIL0960
B	Longpass Filter/IR 990nm	990	4	XIL0990	ZIL0990

下載長通濾波片產品手冊

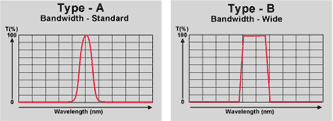

帶通濾波片

Type	Description	CWL (nm)	FWHM (nm)	Item#
Type	Description	CWL (nm)	FWHM (nm)	25mm Dia.	50mm Dia.	50x50mm
A	Bandpass Filter/254nm	254	10	XBPA254		ZBPA254
A	High Transmission UV Bandpass Filter/254nm	254	10	XHQA254
A	Bandpass Filter/260nm	260	10	XBPA260		ZBPA260
A	High Transmission UV Bandpass Filter/260nm	260	10	XHQA260
A	Bandpass Filter/270nm	270	10	XBPA270		ZBPA270
A	High Transmission UV Bandpass Filter/270nm	270	10	XHQA270
A	Bandpass Filter/280nm	280	10	XBPA280		ZBPA280
A	High Transmission UV Bandpass Filter/280nm	280	10	XHQA280
A	Bandpass Filter/290nm	290	10	XBPA290		ZBPA290
A	High Transmission UV Bandpass Filter/290nm	290	10	XHQA290
A	Bandpass Filter/300nm	300	10	XBPA300		ZBPA300
A	High Transmission UV Bandpass Filter/300nm	300	10	XHQA300
A	Bandpass Filter/310nm	310	10	XBPA310		ZBPA310
A	High Transmission UV Bandpass Filter/310nm	310	10	XHQA310
A	High Transmission UV Bandpass Filter/313nm	313	10	XHQA313
A	Bandpass Filter/320nm	320	10	XBPA320		ZBPA320
A	High Transmission UV Bandpass Filter/320nm	320	10	XHQA320
A	Bandpass Filter/330nm	330	10	XBPA330		ZBPA330
A	High Transmission UV Bandpass Filter/330nm	330	10	XHQA330
A	Bandpass Filter/340nm	340	10	XBPA340		ZBPA340
A	High Transmission UV Bandpass Filter/340nm	340	10	XHQA340
	Red Rejection UV Filter 340nm	340		XRR0340		ZRR0340
A	Bandpass Filter/350nm	350	10	XBPA350		ZBPA350
A	High Transmission UV Bandpass Filter/350nm	350	10	XHQA350
A	Bandpass Filter/360nm	360	10	XBPA360		ZBPA360
A	High Transmission UV Bandpass Filter/360nm	360	10	XHQA360
A	Bandpass Filter/365nm	365	10	XBPA365		ZBPA365
A	High Transmission UV Bandpass Filter/365nm	365	10	XHQA365
A	Bandpass Filter/370nm	370	10	XBPA370		ZBPA370
A	High Transmission UV Bandpass Filter/370nm	370	10	XHQA370
A	Bandpass Filter/380nm	380	10	XBPA380	YBPA380	ZBPA380
A	High Transmission UV Bandpass Filter/380nm	380	10	XHQA380
A	Bandpass Filter/390nm	390	10	XBPA390	YBPA390	ZBPA390
A	High Transmission UV Bandpass Filter/390nm	390	10	XHQA390
A	Bandpass Filter/400nm	400	10	XBPA400	YBPA400	ZBPA400
A	Bandpass Filter/405nm	405	10	XBPA405	YBPA405	ZBPA405
A	Bandpass Filter/410nm	410	10	XBPA410	YBPA410	ZBPA410
A	Bandpass Filter/420nm	420	10	XBPA420	YBPA420	ZBPA420
B	Bandpass Filter/0420-020nm	420	20			ZBPB001
A	Bandpass Filter/430nm	430	10	XBPA430	YBPA430	ZBPA430
B	Bandpass Filter/0430-040nm	430	40			ZBPB002
A	Bandpass Filter/436nm	436	10	XBPA436	YBPA436	ZBPA436
A	Bandpass Filter/440nm	440	10	XBPA440	YBPA440	ZBPA440
B	Bandpass Filter/0440-020nm	440	20			ZBPB003
B	Bandpass Filter/0440-060nm	440	60			ZBPB004
A	Bandpass Filter/450nm	450	10	XBPA450	YBPA450	ZBPA450
B	Bandpass Filter/0450-040nm	450	40			ZBPB005
B	Bandpass Filter/0450-080nm	450	80			ZBPB006
A	Bandpass Filter/460nm	460	10	XBPA460	YBPA460	ZBPA460
B	Bandpass Filter/0460-020nm	460	20			ZBPB007
B	Bandpass Filter/0460-060nm	460	60			ZBPB008
B	Bandpass Filter/0460-100nm	460	100			ZBPB009
A	Bandpass Filter/470nm	470	10	XBPA470	YBPA470	ZBPA470
B	Bandpass Filter/0470-040nm	470	40			ZBPB010
B	Bandpass Filter/0470-080nm	470	80			ZBPB011
B	Bandpass Filter/0470-120nm	470	120			ZBPB012
A	Bandpass Filter/480nm	480	10	XBPA480	YBPA480	ZBPA480
B	Bandpass Filter/0480-020nm	480	20			ZBPB013
B	Bandpass Filter/0480-060nm	480	60			ZBPB014
B	Bandpass Filter/0480-100nm	480	100			ZBPB015
B	Bandpass Filter/0480-140nm	480	140			ZBPB016
A	Bandpass Filter/490nm	490	10	XBPA490	YBPA490	ZBPA490
B	Bandpass Filter/0490-040nm	490	40			ZBPB017
B	Bandpass Filter/0490-080nm	490	80			ZBPB018
B	Bandpass Filter/0490-120nm	490	120			ZBPB019
B	Bandpass Filter/0490-160nm	490	160			ZBPB020
A	Bandpass Filter/500nm	500	10	XBPA500	YBPA500	ZBPA500
B	Bandpass Filter/0500-020nm	500	20			ZBPB021
B	Bandpass Filter/0500-060nm	500	60			ZBPB022
B	Bandpass Filter/0500-100nm	500	100			ZBPB023
B	Bandpass Filter/0500-140nm	500	140			ZBPB024
B	Bandpass Filter/0500-180nm	500	180			ZBPB025
A	Bandpass Filter/510nm	510	10	XBPA510	YBPA510	ZBPA510
B	Bandpass Filter/0510-040nm	510	40			ZBPB026
B	Bandpass Filter/0510-080nm	510	80			ZBPB027
B	Bandpass Filter/0510-120nm	510	120			ZBPB028
B	Bandpass Filter/0510-160nm	510	160			ZBPB029
B	Bandpass Filter/0510-200nm	510	200			ZBPB030
A	Bandpass Filter/520nm	520	10	XBPA520	YBPA520	ZBPA520
B	Bandpass Filter/0520-020nm	520	20			ZBPB031
B	Bandpass Filter/0520-060nm	520	60			ZBPB032
B	Bandpass Filter/0520-100nm	520	100			ZBPB033
B	Bandpass Filter/0520-140nm	520	140			ZBPB034
B	Bandpass Filter/0520-180nm	520	180			ZBPB035
B	Bandpass Filter/0520-220nm	520	220			ZBPB036
A	Bandpass Filter/530nm	530	10	XBPA530	YBPA530	ZBPA530
B	Bandpass Filter/0530-040nm	530	40			ZBPB037
B	Bandpass Filter/0530-080nm	530	80			ZBPB038
B	Bandpass Filter/0530-120nm	530	120			ZBPB039
B	Bandpass Filter/0530-160nm	530	160			ZBPB040
B	Bandpass Filter/0530-200nm	530	200			ZBPB041
B	Bandpass Filter/0530-240nm	530	240			ZBPB042
A	Bandpass Filter/540nm	540	10	XBPA540	YBPA540	ZBPA540
B	Bandpass Filter/0540-020nm	540	20			ZBPB043
B	Bandpass Filter/0540-060nm	540	60			ZBPB044
B	Bandpass Filter/0540-100nm	540	100			ZBPB045
B	Bandpass Filter/0540-140nm	540	140			ZBPB046
B	Bandpass Filter/0540-180nm	540	180			ZBPB047
B	Bandpass Filter/0540-220nm	540	220			ZBPB048
B	Bandpass Filter/0540-260nm	540	260			ZBPB049
A	Bandpass Filter/550nm	550	10	XBPA550	YBPA550	ZBPA550
B	Bandpass Filter/0550-040nm	550	40			ZBPB050
B	Bandpass Filter/0550-080nm	550	80			ZBPB051
B	Bandpass Filter/0550-120nm	550	120			ZBPB052
B	Bandpass Filter/0550-160nm	550	160			ZBPB053
B	Bandpass Filter/0550-200nm	550	200			ZBPB054
B	Bandpass Filter/0550-240nm	550	240			ZBPB055
B	Bandpass Filter/0550-280nm	550	280			ZBPB056
A	Bandpass Filter/560nm	560	10	XBPA560	YBPA560	ZBPA560
B	Bandpass Filter/0560-020nm	560	20			ZBPB057
B	Bandpass Filter/0560-060nm	560	60			ZBPB058
B	Bandpass Filter/0560-100nm	560	100			ZBPB059
B	Bandpass Filter/0560-140nm	560	140			ZBPB060
B	Bandpass Filter/0560-180nm	560	180			ZBPB061
B	Bandpass Filter/0560-220nm	560	220			ZBPB062
B	Bandpass Filter/0560-260nm	560	260			ZBPB063
B	Bandpass Filter/0560-300nm	560	300			ZBPB064
A	Bandpass Filter/570nm	570	10	XBPA570	YBPA570	ZBPA570
B	Bandpass Filter/0570-040nm	570	40			ZBPB065
B	Bandpass Filter/0570-080nm	570	80			ZBPB066
B	Bandpass Filter/0570-120nm	570	120			ZBPB067
B	Bandpass Filter/0570-160nm	570	160			ZBPB068
B	Bandpass Filter/0570-200nm	570	200			ZBPB069
B	Bandpass Filter/0570-240nm	570	240			ZBPB070
B	Bandpass Filter/0570-280nm	570	280			ZBPB071
B	Bandpass Filter/0570-320nm	570	320			ZBPB072
A	Bandpass Filter/580nm	580	10	XBPA580	YBPA580	ZBPA580
B	Bandpass Filter/0580-020nm	580	20			ZBPB073
B	Bandpass Filter/0580-060nm	580	60			ZBPB074
B	Bandpass Filter/0580-100nm	580	100			ZBPB075
B	Bandpass Filter/0580-140nm	580	140			ZBPB076
B	Bandpass Filter/0580-180nm	580	180			ZBPB077
B	Bandpass Filter/0580-220nm	580	220			ZBPB078
B	Bandpass Filter/0580-260nm	580	260			ZBPB079
B	Bandpass Filter/0580-300nm	580	300			ZBPB080
B	Bandpass Filter/0580-340nm	580	340			ZBPB081
A	Bandpass Filter/590nm	590	10	XBPA590	YBPA590	ZBPA590
B	Bandpass Filter/0590-040nm	590	40			ZBPB082
B	Bandpass Filter/0590-080nm	590	80			ZBPB083
B	Bandpass Filter/0590-120nm	590	120			ZBPB084
B	Bandpass Filter/0590-160nm	590	160			ZBPB085
B	Bandpass Filter/0590-200nm	590	200			ZBPB086
B	Bandpass Filter/0590-240nm	590	240			ZBPB087
B	Bandpass Filter/0590-280nm	590	280			ZBPB088
B	Bandpass Filter/0590-320nm	590	320			ZBPB089
A	Bandpass Filter/600nm	600	12	XBPA600	YBPA600	ZBPA600
B	Bandpass Filter/0600-020nm	600	20			ZBPB090
B	Bandpass Filter/0600-060nm	600	60			ZBPB091
B	Bandpass Filter/0600-100nm	600	100			ZBPB092
B	Bandpass Filter/0600-140nm	600	140			ZBPB093
B	Bandpass Filter/0600-180nm	600	180			ZBPB094
B	Bandpass Filter/0600-220nm	600	220			ZBPB095
B	Bandpass Filter/0600-260nm	600	260			ZBPB096
B	Bandpass Filter/0600-300nm	600	300			ZBPB097
A	Bandpass Filter/610nm	610	12	XBPA610	YBPA610	ZBPA610
B	Bandpass Filter/0610-040nm	610	40			ZBPB098
B	Bandpass Filter/0610-080nm	610	80			ZBPB099
B	Bandpass Filter/0610-120nm	610	120			ZBPB100
B	Bandpass Filter/0610-160nm	610	160			ZBPB101
B	Bandpass Filter/0610-200nm	610	200			ZBPB102
B	Bandpass Filter/0610-240nm	610	240			ZBPB103
B	Bandpass Filter/0610-280nm	610	280			ZBPB104
A	Bandpass Filter/620nm	620	12	XBPA620	YBPA620	ZBPA620
B	Bandpass Filter/0620-020nm	620	20			ZBPB105
B	Bandpass Filter/0620-060nm	620	60			ZBPB106
B	Bandpass Filter/0620-100nm	620	100			ZBPB107
B	Bandpass Filter/0620-140nm	620	140			ZBPB108
B	Bandpass Filter/0620-180nm	620	180			ZBPB109
B	Bandpass Filter/0620-220nm	620	220			ZBPB110
B	Bandpass Filter/0620-260nm	620	260			ZBPB111
A	Bandpass Filter/630nm	630	12	XBPA630	YBPA630	ZBPA630
B	Bandpass Filter/0630-040nm	630	40			ZBPB112
B	Bandpass Filter/0630-080nm	630	80			ZBPB113
B	Bandpass Filter/0630-120nm	630	120			ZBPB114
B	Bandpass Filter/0630-160nm	630	160			ZBPB115
B	Bandpass Filter/0630-200nm	630	200			ZBPB116
B	Bandpass Filter/0630-240nm	630	240			ZBPB117
A	Bandpass Filter/640nm	640	12	XBPA640	YBPA640	ZBPA640
B	Bandpass Filter/0640-020nm	640	20			ZBPB118
B	Bandpass Filter/0640-060nm	640	60			ZBPB119
B	Bandpass Filter/0640-100nm	640	100			ZBPB120
B	Bandpass Filter/0640-140nm	640	140			ZBPB121
B	Bandpass Filter/0640-180nm	640	180			ZBPB122
B	Bandpass Filter/0640-220nm	640	220			ZBPB123
A	Bandpass Filter/650nm	650	12	XBPA650	YBPA650	ZBPA650
B	Bandpass Filter/0650-040nm	650	40			ZBPB124
B	Bandpass Filter/0650-080nm	650	80			ZBPB125
B	Bandpass Filter/0650-120nm	650	120			ZBPB126
B	Bandpass Filter/0650-160nm	650	160			ZBPB127
B	Bandpass Filter/0650-200nm	650	200			ZBPB128
A	Bandpass Filter/660nm	660	12	XBPA660	YBPA660	ZBPA660
B	Bandpass Filter/0660-020nm	660	20			ZBPB129
B	Bandpass Filter/0660-060nm	660	60			ZBPB130
B	Bandpass Filter/0660-100nm	660	100			ZBPB131
B	Bandpass Filter/0660-140nm	660	140			ZBPB132
B	Bandpass Filter/0660-180nm	660	180			ZBPB133
A	Bandpass Filter/670nm	670	12	XBPA670	YBPA670	ZBPA670
B	Bandpass Filter/0670-040nm	670	40			ZBPB134
B	Bandpass Filter/0670-080nm	670	80			ZBPB135
B	Bandpass Filter/0670-120nm	670	120			ZBPB136
B	Bandpass Filter/0670-160nm	670	160			ZBPB137
A	Bandpass Filter/680nm	680	12	XBPA680	YBPA680	ZBPA680
B	Bandpass Filter/0680-020nm	680	20			ZBPB138
B	Bandpass Filter/0680-060nm	680	60			ZBPB139
B	Bandpass Filter/0680-100nm	680	100			ZBPB140
B	Bandpass Filter/0680-140nm	680	140			ZBPB141
A	Bandpass Filter/690nm	690	12	XBPA690	YBPA690	ZBPA690
B	Bandpass Filter/0690-040nm	690	40			ZBPB142
B	Bandpass Filter/0690-080nm	690	80			ZBPB143
B	Bandpass Filter/0690-120nm	690	120			ZBPB144
A	Bandpass Filter/700nm	700	12	XBPA700	YBPA700	ZBPA700
B	Bandpass Filter/0700-020nm	700	20			ZBPB145
B	Bandpass Filter/0700-060nm	700	60			ZBPB146
B	Bandpass Filter/0700-100nm	700	100			ZBPB147
A	Bandpass Filter/710nm	710	12	XBPA710	YBPA710	ZBPA710
B	Bandpass Filter/0710-040nm	710	40			ZBPB148
B	Bandpass Filter/0710-080nm	710	80			ZBPB149
A	Bandpass Filter/720nm	720	12	XBPA720	YBPA720	ZBPA720
B	Bandpass Filter/0720-020nm	720	20			ZBPB150
B	Bandpass Filter/0720-060nm	720	60			ZBPB151
A	Bandpass Filter/730nm	730	12	XBPA730	YBPA730	ZBPA730
B	Bandpass Filter/0730-040nm	730	40			ZBPB152
A	Bandpass Filter/740nm	740	12	XBPA740	YBPA740	ZBPA740
B	Bandpass Filter/0740-020nm	740	20			ZBPB153
A	Bandpass Filter/750nm	750	12	XBPA750	YBPA750	ZBPA750
A	Bandpass Filter/760nm	760	12	XBPA760	YBPA760	ZBPA760
A	Bandpass Filter/770nm	770	12	XBPA770	YBPA770	ZBPA770
A	Bandpass Filter/780nm	780	12	XBPA780	YBPA780	ZBPA780
A	Bandpass Filter/790nm	790	12	XBPA790	YBPA790	ZBPA790
A	Bandpass Filter/800nm	800	12	XBPA800	YBPA800	ZBPA800
A	Bandpass Filter/810nm	810	12	XBPA810	YBPA810	ZBPA810
A	Bandpass Filter/820nm	820	12	XBPA820	YBPA820	ZBPA820
A	Bandpass Filter/830nm	830	12	XBPA830	YBPA830	ZBPA830
A	Bandpass Filter/840nm	840	12	XBPA840	YBPA840	ZBPA840
A	Bandpass Filter/850nm	850	12	XBPA850	YBPA850	ZBPA850
A	Bandpass Filter/860nm	860	12	XBPA860	YBPA860	ZBPA860
A	Bandpass Filter/870nm	870	12	XBPA870	YBPA870	ZBPA870
A	Bandpass Filter/880nm	880	12	XBPA880	YBPA880	ZBPA880
A	Bandpass Filter/890nm	890	12	XBPA890	YBPA890	ZBPA890
A	Bandpass Filter/900nm	900	12	XBPA900	YBPA900	ZBPA900

下載帶通濾波片產品手冊

中性密度濾波片

Type	Description	Transmission(%)	Item#
Type	Description	Transmission(%)	25mm Dia.	50x50mm
A	Neutral Density Filter/1%	1	XND0001	ZND0001
A	Neutral Density Filter/3%	3	XND0003	ZND0003
A	Neutral Density Filter/6%	6	XND0006	ZND0006
A	Neutral Density Filter/12%	12	XND0012	ZND0012
A	Neutral Density Filter/25%	25	XND0025	ZND0025
A	Neutral Density Filter/50%	50	XND0050	ZND0050
B	Circular Variable ND/OD0.04-3	0.1- 92	XCND3	YCND3

下載中性密度濾波片產品手冊

超冷濾波片(Super Cold Filter)

超冷濾波片Super Cold Filter

Description	Cut/Off(nm)	Thickness(mm)	Item#
Description	Cut/Off(nm)	Thickness(mm)	50mm Dia.	50x50mm
Super Cold Filter 750nm	750	5	YSC0750	ZSC0750
Super Cold Filter 1100nm	1100	5	YSC1100	ZSC1100

下載Super Cold Filter產品手冊

其他濾波片

下載汞燈濾波片產品手冊

下載其他濾波片(Notch Filter,線性可變中性濾波片)產品手冊



	上海玻色智能科技有限公司上海: (021)3353-0926, 3353-0928 北京: (010)8217-0506 廣州: 139-0221-4841 武漢: 139-1733-4172 全國銷售服務熱線：4006-171751 Email: [email protected] www.xinlingshichuang.cn 2008-2022 All Rights Reserved!
熱門產品：光纖光譜儀、積分球、均勻光源、SEMROCK濾光片、太赫茲系統、濾光片、石墨烯納米材料滬ICP備09026157號-2
